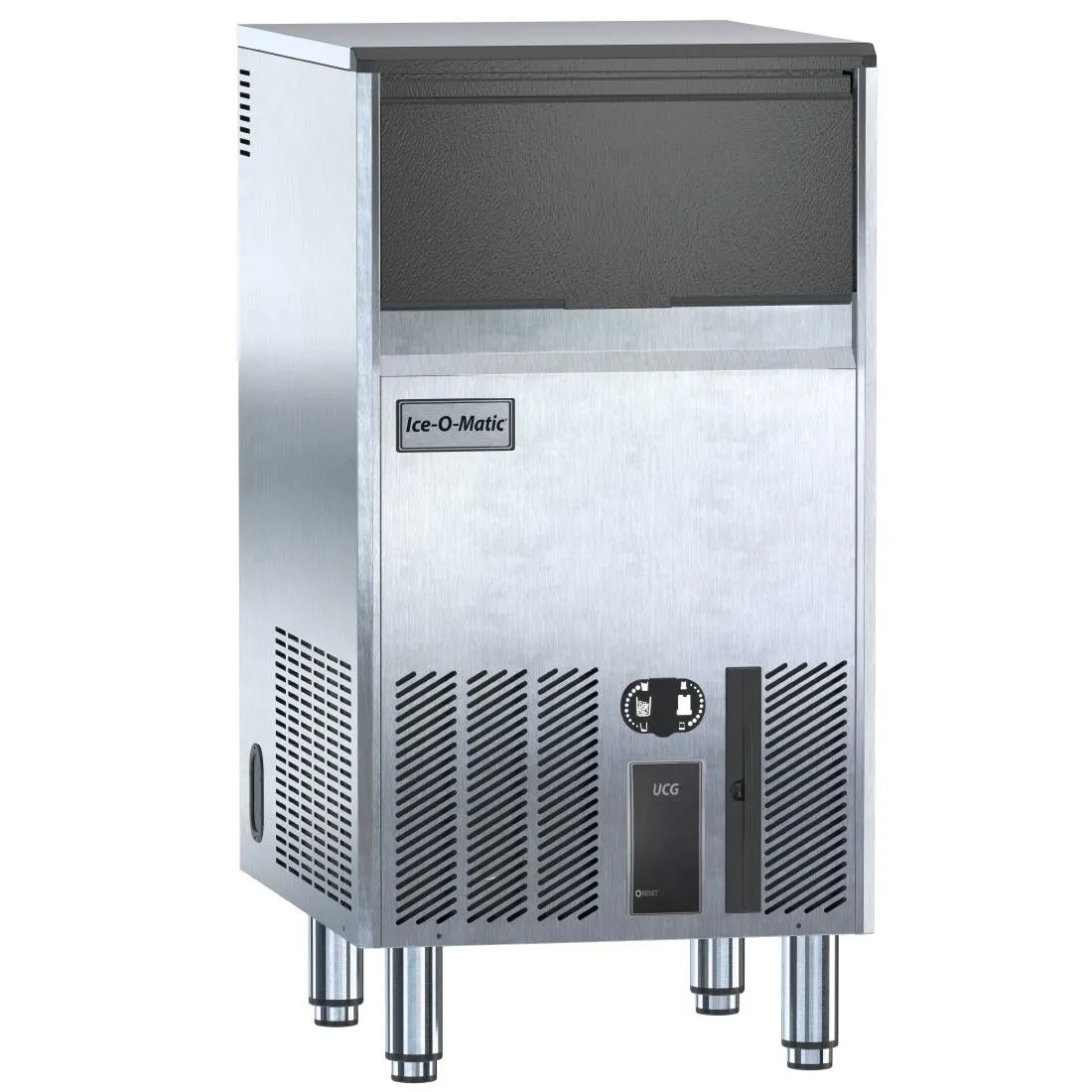

Ice-O-Matic Bistro Cube Ice Machine UCG105A FT643
Ideal for any under-counter or bar application. Constructed from sturdy, corrosion-resistant stainless steel and fingerprint-proof plastic. Easily adjust the thickness of your ice from the front of the machine! Front air discharge design for compact spaces
Produces up to 48kg of ice per day with a 22Kg Ice storage bin.
Integrated Storage
Ice making and storage in one small ice machine that fits under most counters.
Sleek, Compact Design
Space-saving undercounter footprint with contemporary styling.
Superior Construction
Durable corrosion-resistant stainless steel on the inside and a durable stainless finish and industrial-grade fingerprint-proof plastic.
Bistrot Cubes
Crystal-clear, long-lasting, shot-style ice cubes.
Front-Panel Thermostatic Controls
Easy to access thermostatic controls for adjusting key working parameters of the machine.
Removable Air Filter
The all new removable Air filter allows end-user to easily clean as part of the routine cleaning process. This helps to ensure it is always operating to its optimum performance and extends the expected life-span of the machine.
Benefits
Horizontal spray technology
Each ice cube is individually produced using horizontal spray technology.
Tech Specs
Dimensions
Width: 467mm
Depth: 570mm
Height: 790mm
Hydraulic
Minimum allowed supply water pressure: 1.0-4.0 bar
Maximum incoming water pressure: 4.1 bar
Minimum incoming water temperature: 4.5 °C
Maximum incoming water temperature: 38°C
Electrical
Amps Required: 13A 1 Phase
Performance
Ice Cube Style: Shot 20g
Bin Storage: 22kg
Net Weight: 48kg
Ice Production 10°C Water 10°C Air: 48kg/24hr
Ice Production 15°C Water 21°C Air: 48kg/24hr
Components
Condensing Unit: Air / Water
Air Cooled Units: Yes
External Drain Pump: Optional
